Home > AC Brushless Fan >

Metal Frame AC Brushless Fan 2800rpm 220V AC Cooling Fan 200 X 200 X 60 mm

Product Categories

Shenzhen Topfan Technology Development Co., Ltd.

Contact Now

Metal Frame AC Brushless Fan 2800rpm 220V AC Cooling Fan 200 X 200 X 60 mm

Brand Name : MX

Model Number : MX20060ABH22

Certification : CE / ROHS

Place of Origin : China

MOQ : 500pcs

Price : USD12.5- 13.6/ PCS

Payment Terms : T / T

Supply Ability : 100000PCS / MONTH

Delivery Time : 10 - 15 DAYS

Packaging Details : carton box

Size : 200mm X 200mm X 60mm

Bearing : ball bearing

Speed : 2800rpm

Motor type : AC brushless type

Certifications : CE ROHS

Material : metal frame and plastic impeller

Weight : 1600g

Noise : 60db

Current : 0.3-0.4A

Contact Now

Metal Frame AC Brushless Fan 2800rpm 220V AC Cooling Fan 200 X 200 X 60 mm

1 . Product Desription

Basic specification	Beaing type	Ball bearing
	Rated voltage	110V/120V/220V/240V
	Input power	60W
	Speed	2800RPM
	Max air flow	420CFM
	Function	No

Meteial and structure	Frame	Metal
	Impeller	Plastic (94V-0),PBT
	Motor	Reverse Polarity Protected
	Leadwire	2 wires(red+,balck-)
	Connector

Performance	Expected life
	Ball bearing	50000 hours(40℃)
	Sleeve bearing	30000 hours(40℃)
	Allowwable temperature range
	operating	–10℃ to +60℃
	storage	–40℃ to +70℃

Product Description

Bearing Type: Ball Bearing
Function: IP55,IP58,IP66,IP68, Waterproof and dustproof
Frame and Impeller: 94V-0 fireproof, metal frame and plastic impeller
Voltage: AC110V 120V 220V 240V
Temperature range:-20℃ to +70℃
Expected Life: ＜80000 hours

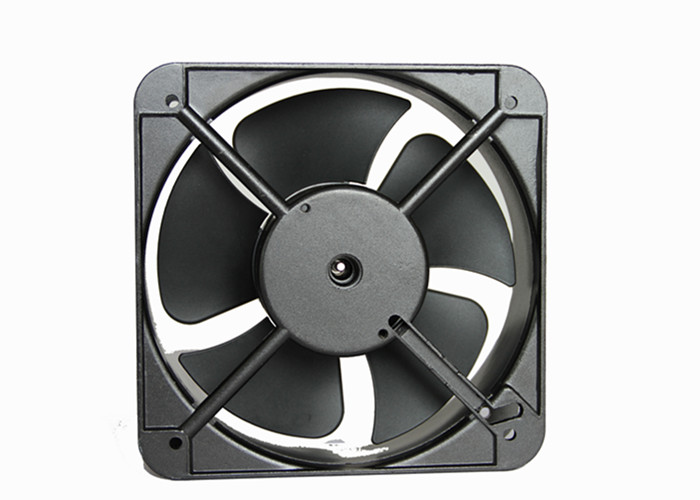

product picture

Metal Frame AC Brushless Fan 2800rpm 220V AC Cooling Fan 200 X 200 X 60 mm

Packaging & Shipping

Packing

Paperboard---------Cartons-------- Card board-----Containers

Metal Frame AC Brushless Fan 2800rpm 220V AC Cooling Fan 200 X 200 X 60 mm

Shipping

Fast logistics system---- shipping will be arranged within 24 hours

Safe develivery ----- specialized trucks for shipping

Metal Frame AC Brushless Fan 2800rpm 220V AC Cooling Fan 200 X 200 X 60 mm

Company Information

ShenZhen Topfan China is a professional manufaturer with 11 years experience Which produces AC fan, DC fan, brushless fan, blower fan and EC fan. Our main markets are south Asia,south America, Europe.

“Concentrate on the sevice of customer” is our purpose.

Metal Frame AC Brushless Fan 2800rpm 220V AC Cooling Fan 200 X 200 X 60 mm

Feel free to Contact : Jenny@topfanchina.cn

+86 13750099269
