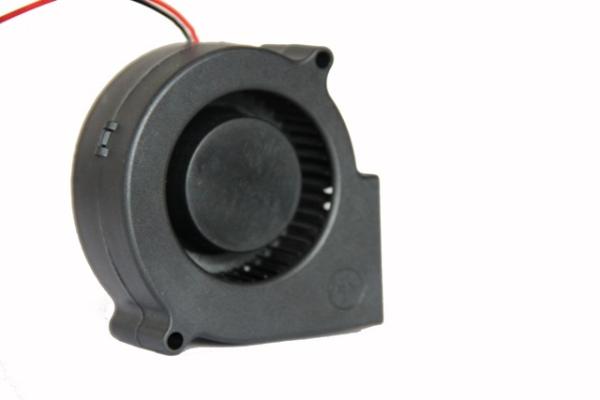

12V 24V DC Blower Fan Car Cooling Type 3500/4500rpm Speed Plastic Material Black

Name: 12V 24V DC Blower Fan Car Cooling Type 35004500rpm Speed Plastic Material Black
Brand: MX/OEM/ODM
Price: 2.00 USD

Buy cheap 12V 24V DC Blower Fan Car Cooling Type 3500/4500rpm Speed Plastic Material Black product

Brand Name : MX/OEM/ODM

Model Number : MX7530GB(S)H1

Certification : CE/ROSH/UL

Place of Origin : China

MOQ : 200pcs

Price : US$2.00/PCS-US5.00/PCS

Supply Ability : 20,000/DAY

Packaging Details : CARTON BOX

Material : Plastic

color : Black

Bearing type : Dual Ball Bearing Or Sleeve Bearing

Rated Voltage : 7.0-13.8V

Current : 0.20-0.60A

Speed : 3500/4500rpm

Contact Now

75×75×30 mm 12V 24V DC Blower Fan / DC Centrifugal Blower fan / Car Cooling Fan

Applications:

Ventilation Equipment & System
Heating Equipment & System
Air Conditioner
Refrigeration equipment
MDBS(Mobile Data Base Station)
Telecom power supply station

Description:

● Various Size
● High speed , Middle speed, Low speed
● Plastic Frame or Die-Cast Aluminum Frame and Plastic impeller
● 5 blades 7 blades or 9 blades
● 5V DC 12V DC 24V DC or 48V DC
● Ball bearing or Sleeve bearing or Hydraulic bearing
● Terminal or Lead wire
● Waterproof explosion proof or high proof are can be satisfied.

A: Specifications:

Model	Bearing Type	Rated Voltage	Operating Voltage	Input Current	Input Power	Speed	Max Air Flow		Max Static Pressure		Noise	Weight
Model	Bearing Type	Rated Voltage	Operating Voltage	Input Current	Input Power	Speed	Max Air Flow		Max Static Pressure		Noise	Weight
Part No.	B.S	VDC	VDC	Amp	Watt	RPM	CFM	m³/min	Inch-H₂O	pa	dB-A	g
MX7530GB(S)H1	B.S	12	7.0-13.8	0.60	7.20	4500	15.64	0.44	1.06	263.31	51	69
MX7530GB(S)M1	B.S	12	7.0-13.8	0.45	5.40	4000	13.67	0.39	0.81	201.13	46	69
MX7530GB(S)L1	B.S	12	7.0-13.8	0.35	4.20	3500	12.25	0.35	0.60	149.55	40	69
MX7530GB(S)H2	B.S	24	14.0-27.6	0.30	7.20	4500	15.64	0.44	1.06	263.31	51	69
MX7530GB(S)M2	B.S	24	14.0-27.6	0.25	6.00	4000	13.67	0.39	0.81	201.13	46	69
MX7530GB(S)L2	B.S	24	14.0-27.6	0.20	4.80	3500	12.25	0.35	0.60	149.55	40	69

B: (Main Materials, Parts Specification):

Bearing	■(Dual Ball Bearing)						□		(Sleeve Bearing)
Frame	■	PBT of UL94V-0.					□		Die-cast Aluminum Alloy
Impeller	■	PBT of UL94V-0.					□		Steel
Bobbin	PBT of UL94V-0.
Lead Wire	■		Red(+)	■	Black(-)	□		Blue(PWM)		UL 1571 28#
	□		Yellow(FG)	□	White(RD)	2 wires 100±10mm
Connector	No
Tube	No

C: Electrical Specification:

ITEM		Specification. Condition
Locked Rotor Protection	□	Safety Condition
	■	Auto power off after locked at rated voltage for 1sec After auto power off ,circuit attempt restart in 2 to 6sec
Polarity Protection	■	Open circuit when Vcc&GND are exchanged
	□	Circuit won’t be burned within 5 seconds when Vcc &GND are exchanged
Insulation Resistance	10MΩ Between unshielded wire and frame at 500VDC/min
Dielectric Strength	5mA Max/ Measured b/w lead wire(+)and frame at 500VAC/min
Special Function	□		Soft Start 5s (0 to Max speed)	□	Current Limiter

Dimensions (Unit:mm)
12V 24V DC Blower Fan Car Cooling Type 3500/4500rpm Speed Plastic Material Black
Shipment:
You could choose the shipping way by yourself .
You could choose the freight forward company by yourself .
We could arrang the shipment according to your require .
If you have any requirements you could contact me soon .
1 . Samples delivery time is 7 working days . ( The quantity of free samples among 2 - 3 pcs . )
2 . Fans quantity : 1K ~ 5K ,the delivery time is 7 ~ 10 working days ;
Fans quantity : over 5K , the delivery time is 15 - 20working days
3 . International express : UPS / DHL / FEDEX and so on .

Any more information , please feel free to contact Helen --→
We will reply you within 2 hours . Thanks

Skype : helen860615
QQ : 304994675
Tel : 86 755 26070926
Mobile :0086-15818540201
