3.7 Inch 110V / 120V AC Low Noise Cooling Fan , Sleeve Bearing Industrial Ventilation Fans

Brand Name : MX,ODM,OEM

Model Number : MX9225ABM11

Certification : CE/ROHS

Place of Origin : China

MOQ : 500pcs

Price : negotiation

Payment Terms : T/T or western Union

Supply Ability : 40,000pcs per month

Delivery Time : 7-10 working days after received your payment

Packaging Details : carton

Product Name : 3.7 Inch Fridge Cooling Fan 92*92*25mm , AC Cooler Fan , Equipment Cooling Fans 92mm

Voltage : 110V 120V 220V 240V

Frequency : 50/60hz

Power Consumption : 12/15W

Air Flow : 27/34CFM

Bearing Type : Ball Bearing , Sleeve Bearing

Frame : Metal

Impeller : Plastic

Weight : 250g

Contact Now

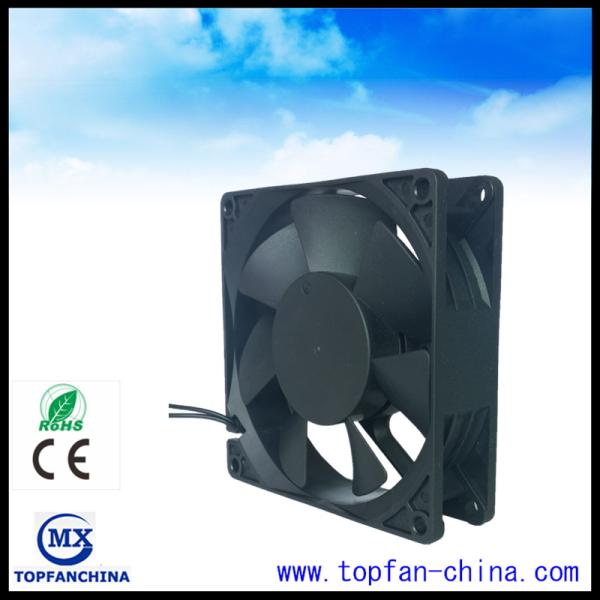

3.7 Inch Fridge Cooling Fan 92*92*25mm , AC Cooler Fan , Equipment Cooling Fans 92mm





92*92*25mm AC fan, low noise and long life expectancy, are widely used in network communications, as well as industrial production equipment, medical equipment, home appliances, etc.





Description:



  • 110/120V 220/240 V AC FAN,used for cooling and ventilation.
  • Frame: Aluminum ADC-12, Painted Black
  • Blade:metal
  • Stator& Rotor:Silicon steel
  • Magnet Wires:Copper 1 PEW
  • Bobbin:PA-66 UL 94 V-0
  • Bearing Type:Ball Bearing Or Sleeve Bearing



Specification:





Model Bearing    Type Rated     Voltage  Freq. Current        Amp Input     Power Speed Max                             Air Flow Max Static Pressure Noise     Level Weight
Part No. S B Y VDC Hz Amp Watt RPM CFM m3/min Inch-H2O dB-A g
MX9225ABM11 B.S 110/120 50/60 0.14/0.12 12 2300/2800 27/34 0.76/0.96 0.16/0.20 29/31 250
MX9225ABM22 B.S 220/240 50/60 0.09/0.05 15 2300/2800 27/34 0.76/0.96 0.16/0.20 29/31 250





Environmental Specification:



Item

Specification/Condition

01

Operating Temp. Range

Temperature:-20℃~75℃

Humidity:20%~85%RH

02

Storage Temperature

Temperature:-30℃~140℃

Humidity:20%~95%RH

03

Life

50000H





Main Materials/Parts Specification:



(Item

Specification

01

Blade

(PBT) PBT+15%GF

02

Frame

Aluminum ADC-12,Painted Black

03

Stator& Rotor

Silicon stee

04

Magnet Wires

Copper 2 UEW

05

Bobbin

PA-66 UL 94 V-0

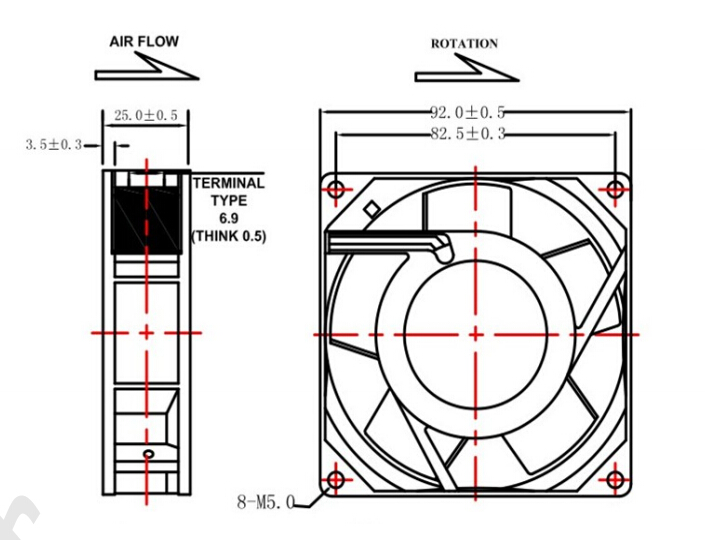

Dimensions:



3.7 Inch 110V / 120V AC Low Noise Cooling Fan , Sleeve Bearing Industrial Ventilation Fans3.7 Inch 110V / 120V AC Low Noise Cooling Fan , Sleeve Bearing Industrial Ventilation Fans
