523mm × 98mm × 91mm Industrial Ventilation Fan / Cabinet Centrifugal Blower

Name: 523mm 98mm 91mm Industrial Ventilation Fan Cabinet Centrifugal Blower
Brand: TOPFAN/ODM/OEM
Price: 1.5 USD

Buy cheap 523mm × 98mm × 91mm Industrial Ventilation Fan / Cabinet Centrifugal Blower product

Brand Name : TOPFAN/ODM/OEM

Model Number : MX60450CFWH23

Certification : CE/ROHS/SGS

Place of Origin : China

MOQ : 100pcs

Price : us$1.5/pcs to us$3.00/pcs, and negotiation

Payment Terms : T/T or western Union

Supply Ability : 600,000pcs per month

Delivery Time : 5-12 working days after received your payment

Packaging Details : carton

Voltage : 220-240V

Size : 523mm × 98mm × 91mm

Bearing type : Ball Bearing

Frame Material : Aluminum

Blade Material : Steel

Speed : 2400CFM

Frequency : 50/60Hz

Operation Temp : -20 to 60 Degree

Contact Now

523mm × 98mm × 91mm Industrial Ventilation Fan / Cabinet Centrifugal Blower

1. Purpose:

This blower are commonly used in HVAC systems,machinery for heating, ventilating, air conditioning, drying, dehumidifying, etc. Such as electronic air cleaner , hand dryers,electronic oven, gas oven, electronic fireplace, gas fireplace, electric fan good balance condition,etc.

2. Expeceed Life:

Ball Bearing 50,000 hours

3. ELECTRICAL CHARACTERISTICS:

ALL MEASUREMENTS PERFORMED AT25~30℃ ROOM TEMPERATURE

& 50~80%R.H.UNLESS OTHERWISE SECIFIED.

1	RATED VOLTAGE	VOLTS	V	220-240VAC
2	OPERATION VOLTAGE	VOLTS	V	160-242
3	FREQUENCY	Hz	Hz	50/60
4	NPUT CURRENT	AMP	A	0.28/0.35A±10%	AT RATED VOLTAGE
5	INPUT POWER	WATTS	W	28W ±10%	AT RATED VOLTAGE
6	ROTATION SPEED	RPM	RPM	2400±10%
7	ACOUSTICAL NOISE(AVG)	dB(A)	dB(A)	≤55	DETAILS SEE ATTACHED PAGE.
8	MAX .AIR-FLOW	M³/H	Q	440	TWO-CHAMBER METHODS DEAILS SEE ATTACHED PAGE.
9	MAX . AIR-PRESSURE	mmH₂O	P	3.1	TWO-CHAMBER METHODS DEAILS SEE ATTACHED PAGE.
10	INSULATION RESISTANCE	MEG. OHM	MΩ	＞20 MΩ	BETWEEN FRAME AND TERMINAL
11	DIELECTRIC STRENGTH			1800V,3S,1MA	BETWEEN FRAME AND TERMINAL.
12	ROTARY DIRECTION			CC W
13	INSULATION CLASS			CLASS E
14	LIFE EXPECTANC			15000 Hours at 25℃/65%RH

4. ENVIRONMENTAL:

4-1.OPERATING TEMPERATURE----------------------- -20 TO+50℃(CLASS E)

4-2.STORAGE TEMPERATURE ------------------------- -30 TO+75℃

4-3.OPERATING HOMIDITY-----------------------------------RH20%-80%

5: Dimensions (Unit:mm) and Specifications:

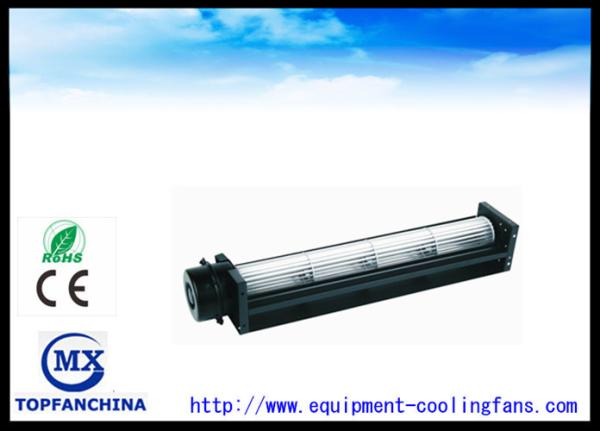

523mm × 98mm × 91mm Industrial Ventilation Fan / Cabinet Centrifugal Blower
