IP65 DC Radiator Blower Fan DC Snail Fan Centrigufal Blower Motor Fan
Applications:
Topfan’s fan products are utilized by all type of machines which required heat reduction systems,
such as UPS systems; Telecommunication equipments; Ventilating systems; LED Digital signage; Disports/exercise equipments; Medical instruments.
Description:
● High speed , Middle speed, Low speed
● Plastic Frame and Plastic impeller
● 5V DC 12V DC or 24V DC
● Ball bearing or Sleeve bearing or Hydraulic bearing
● Terminal or Lead wire
● Waterproof explosion proof or high proof are can be satisfied.
General Specifications:
| Model | Bearing Type | Rated Voltage | Operating Voltage | Input Current | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise | Weight |
| Part No. | B.S | VDC | VDC | Amp | Watt | RPM | CFM | Inch-H2O | dB-A | g |
| MX9330GB(S)U1 | B.S | 12 | 7.0-13.8 | 0.65 | 7.80 | 4000 | 31.5 | 30.6 | 48 | 155 |
| MX9330GB(S)H1 | B.S | 12 | 7.0-13.8 | 0.45 | 5.40 | 3000 | 22.5 | 18.8 | 45 | 155 |
| MX9330GB(S)M1 | B.S | 12 | 7.0-13.8 | 0.30 | 3.60 | 2500 | 17.8 | 12 | 42 | 155 |
| MX9330GB(S)L1 | B.S | 12 | 7.0-13.8 | 0.20 | 2.40 | 2000 | 13 | 6.3 | 38 | 155 |
| MX9330GB(S)U2 | B.S | 24 | 14.0-27.6 | 0.40 | 9.60 | 4000 | 31.5 | 30.6 | 48 | 155 |
| MX9330GB(S)H2 | B.S | 24 | 14.0-27.6 | 0.30 | 7.20 | 3000 | 22.5 | 18.8 | 45 | 155 |
| MX9330GB(S)M2 | B.S | 24 | 14.0-27.6 | 0.18 | 4.32 | 2500 | 17.8 | 12 | 42 | 155 |
| MX9330GB(S)L2 | B.S | 24 | 14.0-27.6 | 0.12 | 2.88 | 2000 | 13 | 6.3 | 38 | 155 |
A: DC 12v Specification:
| Specification |
| Item | Unit | Specification | Condition |
| Dimension | mm | 93×93×30 | L*W*T |
| Bearing System | -- | Ball | --- |
| Rated Voltage | VDC | 12.0 | --- |
| Operating Voltage Range | VDC | 10-13.8 | At 25℃ |
| Start-up Voltage | VDC | 6V | At 25℃ |
| Rated Current | A | 0.15±0.02 | At Rate Voltage |
| Label Current | A | --- | --- |
| Rated Power | W | 1.8 | At Rate Voltage |
| Rated Speed | RPM | 4000±10% | At Rate Voltage |
| Air Flow | CFM | 31.5 | Air Pressure=0 |
| Static Air Pressure | Inch-H2O | 30.6 | Air Flow=0 |
| Noise Level | dBA | 48 | Rated Speed |
| Motor Protection | -- | Impedance | |
| Other Features | |
| Auto Restart | Yes | Application |
| Tachometer Output | No | Not Application |
| Lock Rotor Alarm | No | Not Application |
| Thermal Control | No | Not Application |
| PWM Control | No | Application |
| IP Grade | IP65/IP68 | Application |
| Connection Lead Type | |
| Lead Wire | UL1007 26AWG * 360mm | |
| Connector | 2.54 2PIN | |
| Life Expectancy | Hours | 50000 | Environment temperature At 25℃ |
| Net Weight | Gram | 155 | |
B: (Main Materials, Parts Specification):
| Bearing | ■(Dual Ball Bearing) | □ | (Sleeve Bearing) |
| Frame | ■ | PBT of UL94V-0. | □ | Die-cast Aluminum Alloy |
| Impeller | ■ | PBT of UL94V-0. | □ | Steel |
| Bobbin | PBT of UL94V-0. |
| Lead Wire | ■ | Red(+) | ■ | Black(-) | □ | Blue(PWM) | UL 1571 28# |
| □ | Yellow(FG) | □ | White(RD) | 2 wires 100±10mm |
| Connector | No |
| Tube | No |
C: Electrical Specification:
| ITEM | | Specification. Condition |
| Locked Rotor Protection | □ | Safety Condition |
|
■
| Auto power off after locked at rated voltage for 1sec
After auto power off ,circuit attempt restart in 2 to 6sec |
| Polarity Protection | ■ | Open circuit when Vcc&GND are exchanged |
| □ | Circuit won’t be burned within 5 seconds when Vcc &GND are exchanged |
| Insulation Resistance | 10MΩ Between unshielded wire and frame at 500VDC/min |
| Dielectric Strength | 5mA Max/ Measured b/w lead wire(+)and frame at 500VAC/min |
| Special Function | □ | Soft Start
5s (0 to Max speed) | □ | Current Limiter |

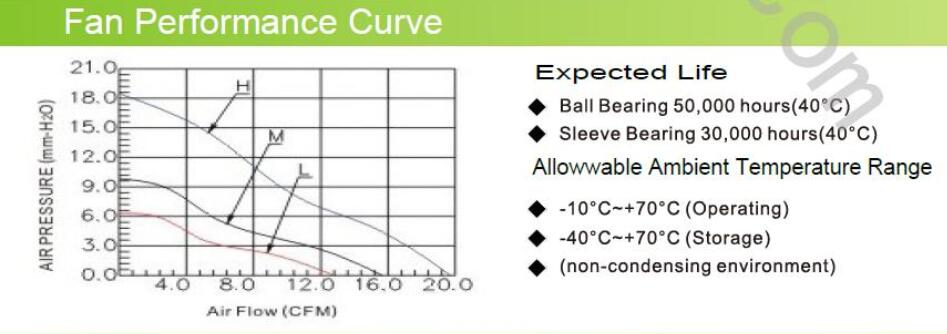

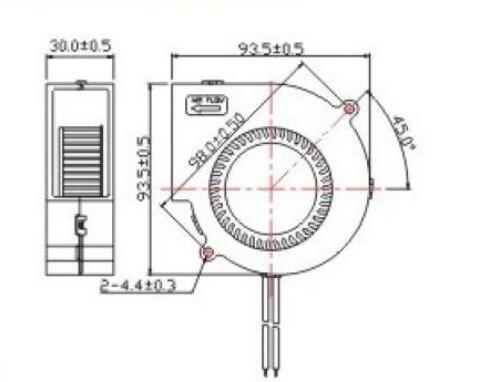

Dimensions (Unit:mm)
