brushless axial ac motor with 220V size of 200 * 200 * 60mm industrial electronic fan for air cooler
Brushless axial ac fan 200mm , low noise and long life expectancy , are widely used in the computer information technology , network communications , as well as industrial production equipment , medical equipment , home appliances , etc .
General Specification
| Bearing Type | Ball Bearing |
| Function | IP55 , IP58 , IP66 , IP68 , Waterproof and dustproof |
| Frame and Impeller | 94V - 0 fireproof , metal frame and plastic impeller |
| Voltage | AC110V 120V 220V 240V |
| Temperature range | - 20 ℃ to + 70 ℃ |
| Expected Life | < 80000 hours |
| Model | Bearing Type | Rated Voltage | Freq . | Current Amp | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise Level | Weight |
| Part No . | S B Y | VDC | Hz | Amp | Watt | RPM | CFM | m3 / min | Inch - H2O | dB - A | g |
| MX20060ABH11 | B | 110 / 120 | 50 / 60 | 0 . 4 | 60 | 2500 / 2800 | 420 / 490 | 13 . 0 / 14 . 9 | 0 . 6 / 0 . 72 | 60 / 65 | 1600 |
| MX20060ABH22 | B | 220 / 240 | 50 / 60 | 0 . 3 | 60 | 2500 / 2800 | 420 / 490 | 13 . 0 / 14 . 9 | 0 . 6 / 0 . 72 | 60 / 65 | 1600 |
> > If you want another rpm or voltage or special functionm please contact with us directly .
> > Products have a detail in the approval sheet .
> > The size , voltage, power & speed can be made according to your requirements !
> > could be made with waterproof function
> > We ' re professional manufacturer of cooling fans & motors for 11 years ' experience
> > On time delivery

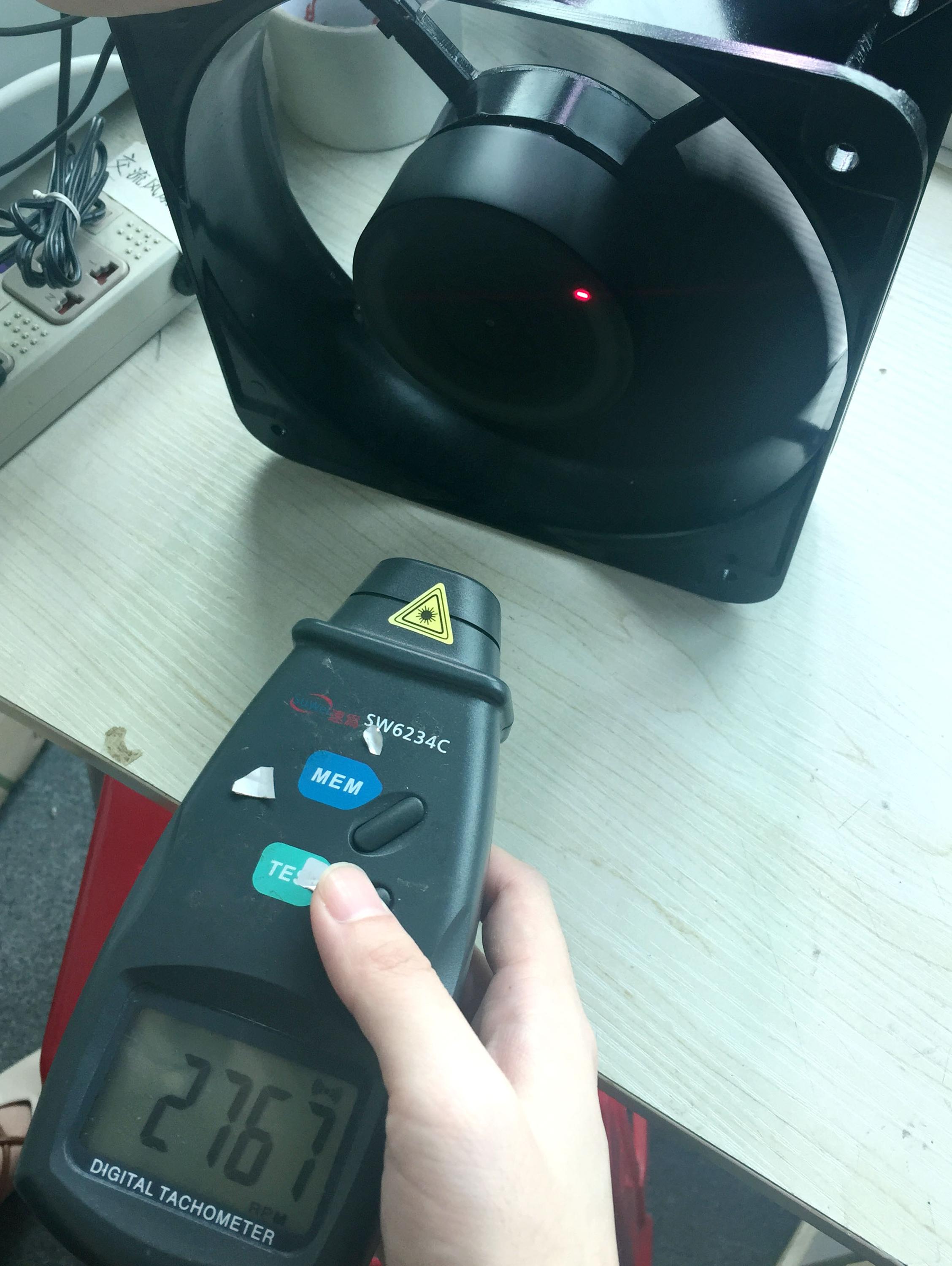

More photoes
P . S . :
> You could choose the shipping way by yourself .
> You could choose the freight forward company by yourself .
> We could arrang the shipment according to your require .
> If you have any requirements you could contact me soon .
Application
Topfan ’ s fan products are utilized by all type of machines which required heat reduction systems ,
such as UPS systems ; Telecommunication equipments ; Ventilating systems ; LED Digital signage ;
Disports / exercise equipments ; Medical instruments .
The products . including brushless fans . cross flow fans . blower fans . centrifugal fans . dc brushless
motor . shades pole and RC ac fans etc. are being widely used in the information technology . network
communications as well as industrial production equipment . medical equipment . and others .
Factory
Shenzhen Topfan - China Development Technology Co . , Ltd , founded in 1996 in Shenzhen China , is
aprofessional manufacturer on dc brushless fans and ac fans . Products are certificated and
good sellers both at home and abroad , including Europe , North America , Asia ( Korea and India ) etc .
- We offer 30000 hours warranty for sleeve bearing fans , 50000 hours warranty for ball bearing
fans
- We can also provide fans with longer use times .
