Brand Name : MX

Model Number : MX30290CFM22

Certification : CE / ROHS / UL / SGS

Place of Origin : China

MOQ : 500pcs

Price : us $ 1 . 5 / pcs to us $ 3 . 00 / pcs , and negotiation

Payment Terms : T / T or western Union

Supply Ability : 600 , 000pcs per month

Delivery Time : 5 - 12 working days after received your payment

Packaging Details : carton

Voltage : 110 - 120 V , 220 - 240V

Diameter : 30mm

Length : 90mm , 150mm , 190mm , 290mm

Bearing type : Ball Bearing

Frame Material : Aluminum ADC - 12

Blade Material : Cast Iron

Contact Now

30mm Diameter Equipment Cooling Fan / 1 . 18 inch Series AC Elevator Cross Flow Fan

1 Purpose

It is applied in air cleaner , elevator , humidifier , laboratory , workshop , dehumidifier , projector and copy machine , etc ..

2 Expeceed Life

Ball Bearing 50 , 000 hours
Sleeve Bearing 30 , 000hours

3 ELECTRICAL CHARACTERISTICS

ALL MEASUREMENTS PERFORMED AT25 ~ 30 ℃ ROOM TEMPERATURE

& 50 ~ 80 %R . H . UNLESS OTHERWISE SECIFIED .

1	RATED VOLTAGE	VOLTS	V	220 VAC
2	OPERATION VOLTAGE	VOLTS	V	160 - 242
3	FREQUENCY	Hz	Hz	50
4	NPUT CURRENT	AMP	A	0.13 A± 10 %	AT RATED VOLTAGE
5	INPUT POWER	WATTS	W	13W ± 10 %	AT RATED VOLTAGE
6	ROTATION SPEED	RPM	RPM	2700 ± 10 %
7	ACOUSTICAL NOISE ( AVG )	dB ( A )	dB ( A )	≤ 32	DETAILS SEE ATTACHED PAGE
8	MAX . AIR - FLOW	CFM	Q	28	TWO - CHAMBER METHODS DEAILS SEE ATTACHED PAGE
9	MAX . AIR -PRESSURE	mmH₂O	P	1 . 0	TWO - CHAMBER METHODS DEAILS SEE ATTACHED PAGE
10	INSULATION RESISTANCE	MEG . OHM	MΩ	＞ 20 MΩ	BETWEEN FRAME AND TERMINAL
11	DIELECTRIC STRENGTH			1800V , 3S , 1MA	BETWEEN FRAME AND TERMINAL
12	ROTARY DIRECTION			CC W
13	INSULATION CLASS			CLASS E
14	LIFE EXPECTANC			15000 Hours at 25 ℃ / 65 % RH

4 ENVIRONMENTAL

4 - 1 . OPERATING TEMPERATURE ----------------------- - 20 TO + 50 ℃ ( CLASS E )

4 - 2 . STORAGE TEMPERATURE ------------------------- - 30 TO + 75 ℃

4 - 3 . OPERATING HOMIDITY ----------------------------------- RH 20 % - 80 %

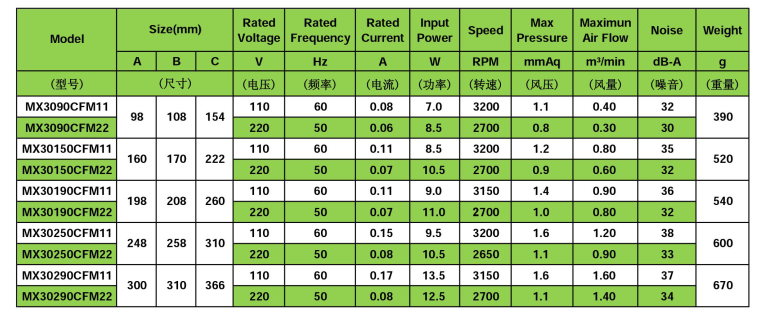

5 Specifications

30mm Diameter Equipment Cooling Fans / 1 . 18 Inch Industrial Cooling Fans

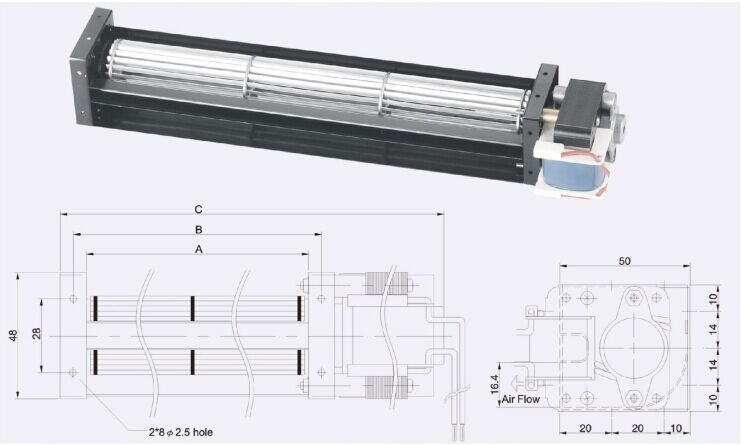

6 Dimensions ( Unit : mm )
30mm Diameter Equipment Cooling Fans / 1 . 18 Inch Industrial Cooling Fans

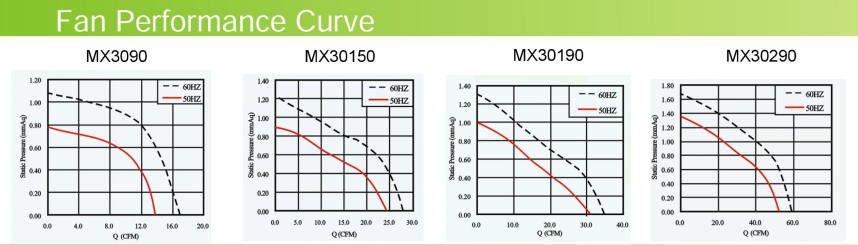

7 Fan Performance Curve
