120mm Electronic Equipment Cooling Fans 110v / 220v AC Brushless Fan

Brand Name : MX

Model Number : MX12038ABH22

Certification : CE / ROHS

Place of Origin : China

MOQ : 500pcs

Price : negotiation

Payment Terms : T / T or western Union

Supply Ability : 40 , 000pcs per month

Delivery Time : 7 - 10 working days after received your payment

Packaging Details : carton

Size : 120mm X 120mm X 38mm

Voltage : 110 / 120V , 220 / 230V

Frequency : 50 / 60Hz

Speed : 2500rpm

Motor : AC Brushless type

Power : 25 / 16 W

Contact Now

120mm Electronic Equipment Cooling Fans 110v / 220v AC Brushless Fan

AC fan , low noise and long life expectancy , are widely used in network communications , as well as industrial production equipment , medical equipment , home appliances , etc .

Description :

220V AC FAN 120mm , used for cooling and ventilation .
Frame : Aluminum ADC - 12 , Painted Black
Stator & Rotor : Silicon steel
Magnet Wires : Copper 1 PEW
Bobbin : P A - 66 UL 94 V - 0
Bearing Type : Ball Bearing
Packaging Detail : white / color box , blister package
Life Expectancy : Dual Ball Bearing : 50000 hours
Sleeve Bearing : 20000 - 25000 hours
Standard : Fully CE , ROHS Approved

Specification :

Bearing Type	Ball Bearing
Function	IP55 , IP58 , IP66 , IP68 , Waterproof and dustproof
Frame and Impeller	94V - 0 fireproof , metal frame and plastic impeller
Voltage	AC110V 120V 220V 240V
Temperature range	- 40 ℃ to + 125 ℃
Expected Life	＜80000 hours

Model:

Model	Bearing Type	Rated Voltage	Freq.	Current Amp	Input Power	Speed	Max Air Flow		Max Static Pressure	Noise Level	Weight
Model	Bearing Type	Rated Voltage	Freq.	Current Amp	Input Power	Speed	Max Air Flow		Max Static Pressure	Noise Level	Weight
Part No .	S B Y	VDC	Hz	Amp	Watt	RPM	CFM	m3 / min	Inch - H2O	dB - A	g
	B . S	110 / 120	50 / 60	0 . 14 / 0 . 12	25 / 16	2500 / 2800	87/ 1 60	2 . 46 / 2 . 85	0 . 26 / 0 . 32	34 / 40	500
MX12038 ABH22	B . S	220 / 240	50 / 60	0 . 22 / 0 . 27	25 / 16	2500 / 2800	87 / 160	2 . 46 / 2 . 85	0 . 26 / 0 . 32	34 / 40	500

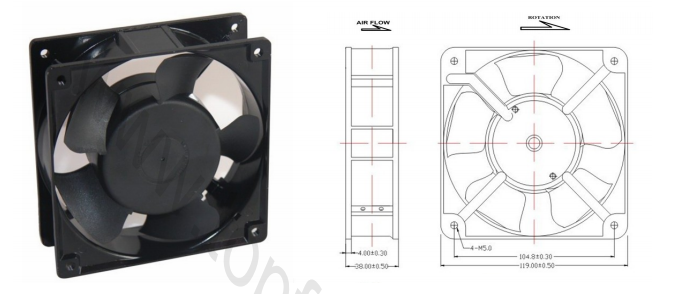

Dimension :

120mm Electronic Equipment Cooling Fans 110v / 220v AC Brushless Fan

Fan Performance Curve :

120mm Electronic Equipment Cooling Fans 110v / 220v AC Brushless Fan

Some Details :

120mm Electronic Equipment Cooling Fans 110v / 220v AC Brushless Fan
