12v 24v 48v 60mm Reversible Electronics Cooling Fans For Laptop

12v 24v 48v 60mm Reversible Electronics Cooling Fans For Laptop

commercial ventilation fans

electronics cooling fans

Home > Equipment Cooling Fans >

Product Categories

Shenzhen Topfan Technology Development Co., Ltd.

Contact Now

Brand Name : MX,ODM,OEM

Model Number : MX6025ABH1

Certification : CE/ROHS

Place of Origin : China

MOQ : 500pcs

Price : negotiation

Payment Terms : T/T or western Union

Supply Ability : 40,000pcs per month

Delivery Time : 7-10 working days after received your payment

Packaging Details : carton box

Voltage : 12V 24V 48V

Bearing Type : Ball Bearing , Sleeve Bearing

Frame : Plastic

Impeller : Plastic

Size : 60 x 60x 25mm

Motor : Dc Brushless Fan

Speed : 8000rpm

Current Amp : 0 . 65A

Contact Now

12v 24v 48v 60mm Reversible Electronics Cooling Fans For Laptop

60mm Brushless axial dc fan , low noise and long life expectancy, are widely used in the computer information technology, network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

Reversible fan has two states: a state when inhaling air through the radiator pumped through the engine blowing on the other side; state when exhaust air heat engine wrapped folder blown through the radiator.

Gerenal Specifications:

Specification:

Model	Bearing Type	Rated Voltage	Operating Voltage	Input Current	Input Power	Speed	Max Air Flow		Max Static Pressure		Noise	Weight
Model	Bearing Type	Rated Voltage	Operating Voltage	Input Current	Input Power	Speed	Max Air Flow		Max Static Pressure		Noise	Weight
Part No.	B.S	VDC	VDC	Amp	Watt	RPM	CFM	m³/min	Inch-H₂O	pa	dB-A	g
MX6025 AB(S)U1	B.S	12	7.0-13.8	0.45	5.40	6000	29.43	0.83	0.37	91.40	45.00	56.00
MX6025 AB(S)H1	B.S	12	7.0-13.8	0.25	3.00	5000	24.77	0.70	0.27	67.47	38.00	56.00
MX6025 AB(S)M1	B.S	12	7.0-13.8	0.18	2.16	4000	19.15	0.54	0.17	42.56	32.00	56.00
MX6025 AB(S)L1	B.S	12	7.0-13.8	0.10	1.20	3000	14.77	0.42	0.11	26.38	27.00	56.00
MX6025 AB(S)D1	B.S	12	7.0-13.8	0.06	0.72	2000	9.20	0.26	0.04	10.49	23.00	56.00
MX6025 AB(S)U2	B.S	24	14.0-27.6	0.25	6.00	6000	29.43	0.83	0.37	91.40	45.00	56.00
MX6025 AB(S)H2	B.S	24	14.0-27.6	0.18	4.32	5000	24.77	0.70	0.27	67.47	38.00	56.00
MX6025 AB(S)M2	B.S	24	14.0-27.6	0.15	3.60	4000	19.15	0.54	0.17	42.56	32.00	56.00
MX6025 AB(S)L2	B.S	24	14.0-27.6	0.10	2.40	3000	14.77	0.42	0.11	26.38	27.00	56.00
MX6025 AB(S)U4	B.S	48	28.0-56.0	0.18	8.64	6000	29.43	0.83	0.37	91.40	45.00	56.00
MX6025 AB(S)H4	B.S	48	28.0-56.0	0.12	5.76	5000	24.77	0.70	0.27	67.47	38.00	56.00
MX6025 AB(S)M4	B.S	48	28.0-56.0	0.08	3.84	4000	19.15	0.54	0.17	42.56	32.00	56.00
MX6025 AB(S)L4	B.S	48	28.0-56.0	0.06	2.88	3000	14.77	0.42	0.11	26.38	27.00	56.00

Environmental Specification:

Item		Specification/Condition
01	Operating Temp. Range	Temperature:-20℃~75℃ Humidity:20%~85%RH
02	Storage Temperature	Temperature:-30℃~140℃ Humidity:20%~95%RH
03	Life	50000H

Main Materials/Parts Specification:

(Item		Specification
01	Blade	(PBT) PBT+15%GF
02	Frame	Aluminum ADC-12,Painted Black
03	Stator& Rotor	Silicon stee
04	Magnet Wires	Copper 2 UEW
05	Bobbin	PA-66 UL 94 V-0

Item		Specification/Condition
1	Mode1 No.	MX6025ABH1-Z
2	Outline. Dimension	606025
3	Operating Voltage	DC 5-13.0V
4	Rated .voltage	DC 12V
5	Starting Voltage	DC ≤5V on/off
6	Rated current	Forward:0.70±0.05A reverse:0.80±0.05A	a. (Rated .voltage) b.25℃ 65% RH c.After testing for 5 minutes
7	Power consumption	Forward 8.04W(MAX9.6W) reverse 9.6W(MAX10.2W)
8	Speed	Forward:8000±10%RPM reverse8000±10%RPM
9	Max Airflow	Forward:42.69CFM reverse:31.6CFM	a. (Rated .voltage) b. AMCA(Standard) C. (Rated current)
9	Air .Static Pressure	Forward:9.52mmH2O reverse:3.70mmH2O	a. (Rated .voltage) b. AMCA(Standard) C. (Rated current)
10	Noise Level	Forward≤53.6dB reverse≤54.9dB	a. (Rated Voltage) b. (Non-Echo Chamber) c. (Standard):CNS 8753 / ISO 3744 d. Test Condition :ISO 7779 e. (Distance): 1.0 M
11	Life expectancy	50000Hrs 25℃	MTTF (Mean Time To Failure) Conf. Level 90%)
12	No.of.Blade	7 Blade
13	No.of.Pole	4 Pole
14	Rotating Direction	counterclockwise
15	Lock Protection	█YES
16	Polarity Protection	█YES
17	Soft start	█YES
18	Overcurrent protection	█YES as your ask for
19	fixed constant speed Function	□ NO
20	PWM PWM function	□ NO
21	PQ

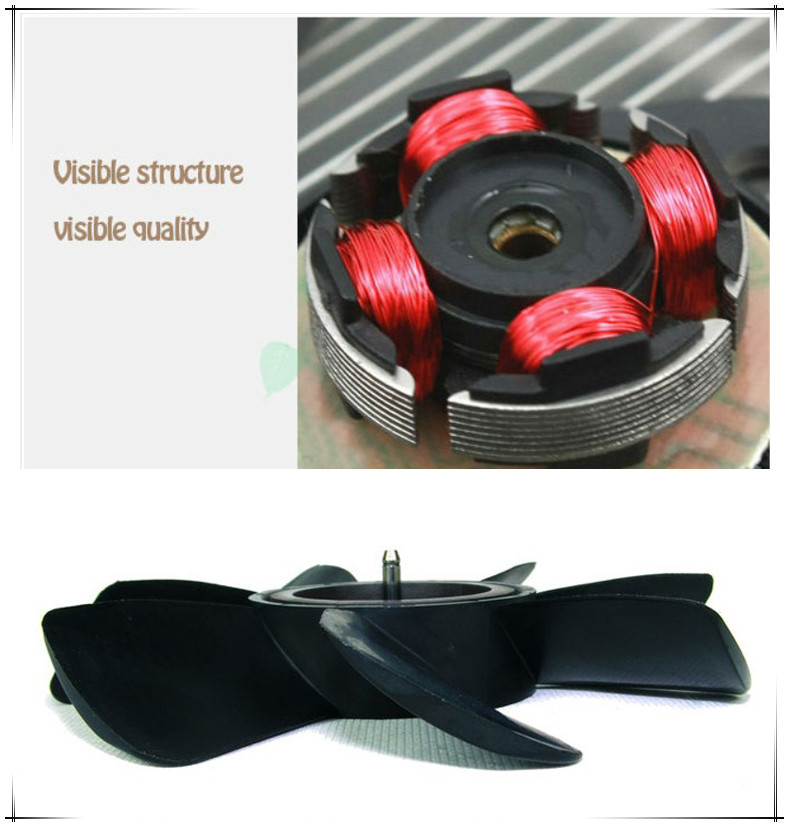

Some Details:

12v 24v 48v 60mm Reversible Electronics Cooling Fans For Laptop

Product Tags:

Bearing Type:

Ball Bearing

IP55,IP58,IP66,IP68, Waterproof and dustproof

Frame and Impeller:

94V-0 fireproof, metal frame and plastic impeller

AC110V 120V 220V 240V

Temperature range:

-40℃ to +125℃

Expected Life:

＜80000 hours
