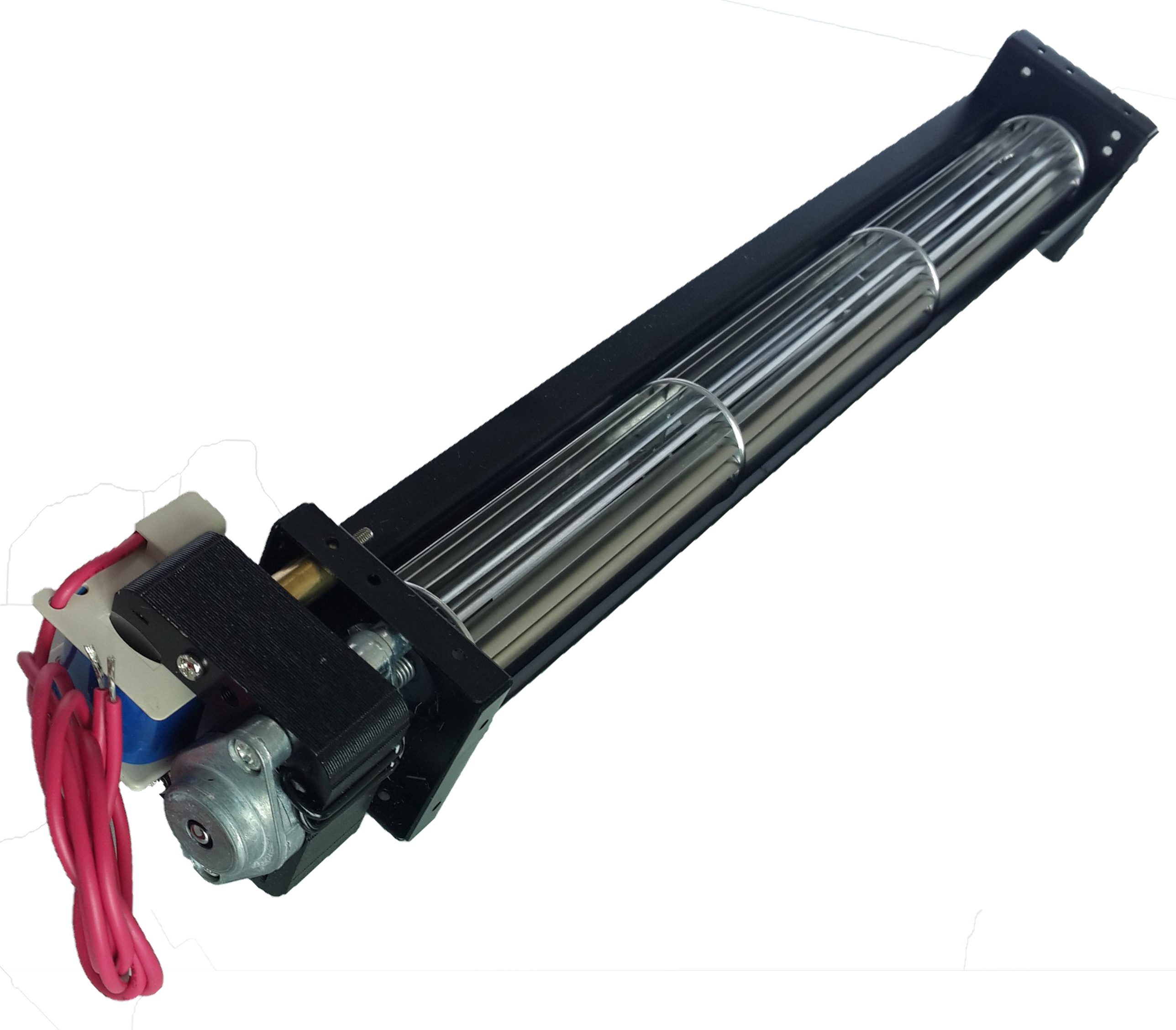

Compact AC Equipment Cooling Fans With CE UL ROHS / Industrial Cross Cooling Fan

Compact AC Equipment Cooling Fans With CE UL ROHS / Industrial Cross Cooling Fan

1  Product Desription

   Product size :  30mm X 290mm
   Frame :  Aluminum Alloy
   Impeller : Iron
   Motor protection :  Impedance protect

ENVIRONMENTAL :

OPERATING TEMPERATURE -----------------------  - 20 TO + 50 ℃ ( CLASS E )

 STORAGE TEMPERATURE  -------------------------   - 30 TO + 75 ℃

  OPERATING HOMIDITY----------------------------------- RH 20 % - 80 %

  Working temperature :
   Ball bearing : - 30 ℃ ~ 75 ℃
   Sleeve bearing : - 10 ℃ ~ 70 ℃

   Net Weight : 900g

2  Features

•  Compact
•  Maintenance - fee
•  Easy to mount
•  Low noise level
•  Little vibration
•  Reliable movement

3 Application

30mm X 30mm X 290mm cross flow fan is mainly used for ground control , equipment , electronic equipment , medical equipment , computers , power supplies , welding machines , packaging , printing equipment , satellite communications , CNC , machinery and office automation products such as ventilation and cooling purposes .

4  Performance sheet

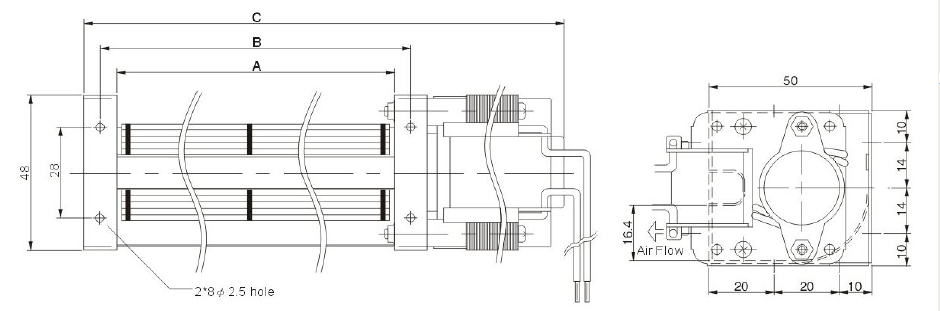

5 Dimensions

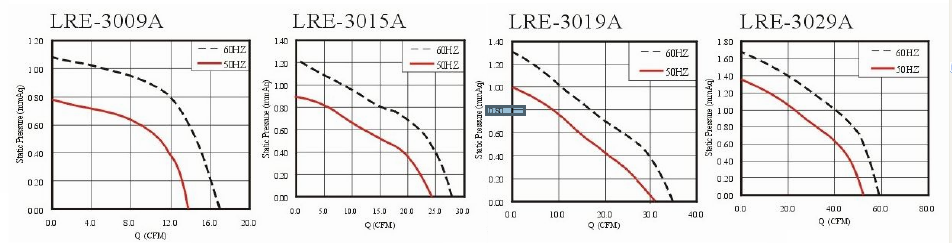

6 Performance Curve

i ) If you want another rpm or voltage or special functionm please contact with us directly .

ii ) Products have a detail in the approval sheet .

iii ) Specifications are subject to change without notice .
