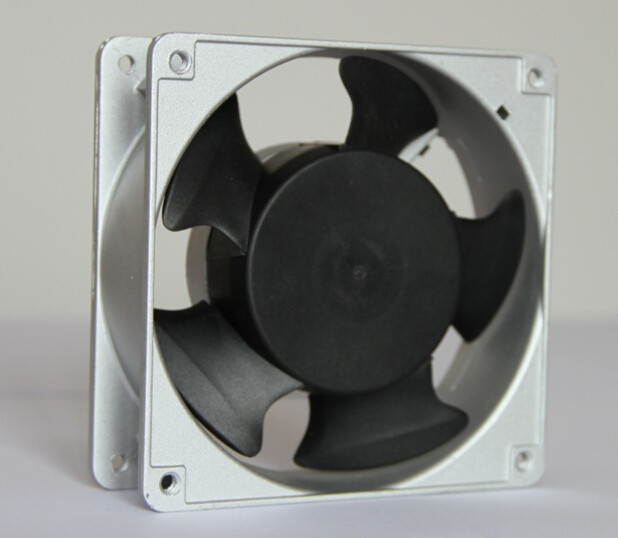

5 Blades 4.5 Inch Equipment Cooling Fan /AC Fan 120mm x 120mm x 38mm / Cooler Fan
Applications:
Topfan’s fan products are utilized by all type of machines which required heat reduction systems,
such as UPS systems; Telecommunication equipments; Ventilating systems; LED Digital signage; Disports/exercise equipments; Medical instruments.
Description:
- 110V-120V , 220V-240V AC FAN, used for cooling and ventilation.
- Frame: Aluminum ADC-12, Painted Black
- Blade:Plastic
- Stator& Rotor: Silicon steel
- Magnet Wires: Copper 1 PEW
- Bobbin: 94V-0 fireproof, metal frame and plastic impeller
- Bearing Type: Ball Bearing or Sleeve Bearing
Expected Life :
1 . Ball Bearing 50,000 hours ( 40°c )
2 . Sleeve Bearing 30,000 hours ( 40°c )
Allowable Ambient Temperature Range
1 . - 10 °c ~ +70 °c ( Operating )
2 . - 40°c ~ + 70°c ( Storage )
3 . ( non - condensing environment )
Specifications:
| Model | Bearing Type | Rated Voltage | Freq. | Current Amp | Input Power | Speed | Max Air Flow | Max Static Pre ssure | Noise Level | Wei ght |
| Part No. | S B Y | VDC | Hz | Amp | Watt | RPM | CFM | m3/min | Inch-H2O | dB-A | g |
| MX12038 ABH11 | B.S | 110/120 | 50/60 | 0.14/0.12 | 25/16 | 2500/2800 | 87/160 | 2.46/2.85 | 0.26/0.32 | 34/40 | 500 |
| MX12038 ABH22 | B.S | 220/240 | 50/60 | 0.22/0.27 | 25/16 | 2500/2800 | 87/160 | 2.46/2.85 | 0.26/0.32 | 34/40 | 500 |
Competitive Advantage:
*Qualified, cost effective and easily operated
*Small in shape, have compact structure
*UL, CE, Rohs, CUL, CCC
* Competitive Pricing
* Keep Investing and Developing In New Products
* The Most Advanced Testing and Measuring Equipment
* On-Time Delivery
Our Services
1.Warranty : one year warranty for all products.
2.Privated Labelling: All of axial fan are able to be Private labeled.
3.Delivery time:Normally lead time is 14 days.
4.Products quality:100% products inspection before delivery.
5.Customized products and cooling products is provided as customer request.
Photo:
