12 V High Performance Topfan Industrial Ventilation Fans 120mm X 120mm X 25mm

Brand Name : MX

Model Number : MX12025GBH1

Certification : CE / ROHS / UL

Place of Origin : China

MOQ : 200PCS

Price : USD5~15/piece

Payment Terms : T/T / PAYAPL

Supply Ability : 40,000pcs per month

Delivery Time : 7-10 working days after received the full payment

Packaging Details : Carton

Color : Black

Speed : 4800RPM

Power Consumption : 7.68w

Bearing Type : Dual Ball Bearing

Shape : Round

Voltage : 12V

Contact Now

12 V High Performance Topfan Industrial Ventilation Fans 120mm X120mm X 25mm

Frame and Impeller : Plastic (94V-0),PBT

Bearing Type : Ball bearing
Function Range : FG RD PWM IP58 IP68
Operating Voltage: 5V 12V 24V 48V

Leadwire : Red Wire Positive(+),Black Wire Negative(-)
Tempetature Range : –20℃ to +70℃
Motor : Impedance Protected and Reverse Polarity Protected

Packaging & Delivery

Packaging Details : Cartons

Delivery Details : 7~10 working days after recieving the full payment

Detailed Product Description

Size : 120 X120 X 25mm

Bearing : Dual Ball Bearing

Voltage : DC

Speed : 4800RPM

Certifications : UL , CE , TUV , ISO9000 and ROHS

Motor : Impedance Protected and Reverse Polarity Protected.

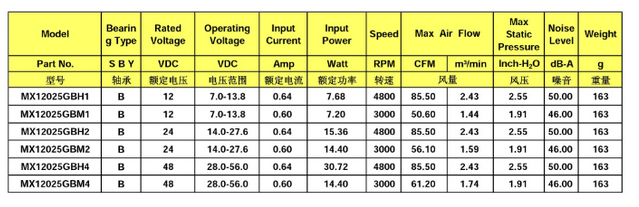

Specification

12 V High Performance Topfan Industrial Ventilation Fans 120mm X 120mm X 25mm

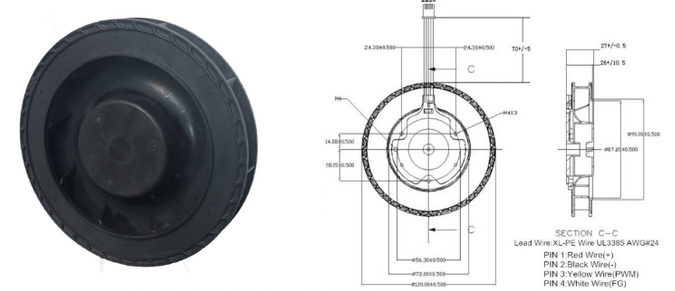

Dimensions(mm)

Expected Life

Ball Bearing 50,000 hours ( 40℃ )

Allowable Ambient Temperature Range

-10℃~+70℃( operating )

-40℃~+70℃( storage )

Non-condensing enviroment

Certifications

12 V High Performance Topfan Industrial Ventilation Fans 120mm X 120mm X 25mm
