120mm X 120mm X 25mm ball bearing DC 24V motor centrifugal cooling brushless fan high speed CE and RHOS
| Frame and Impeller : | Plastic ( 94V - 0 ) , PBT |
| Bearing Type : | Ball bearing |
| Function Range : | FG RD PWM IP58 IP68 |
| Leadwire : | Red Wire Positive ( + ) , Black Wire Negative ( - ) |
| Operating Voltage : | 5V 12V 24V |
| Tempetature Range : | – 20 ℃ to + 70 ℃ |
| Motor : | Impedance Protected and Reverse Polarity Protected |
| Item | Specification/Condition |
| Mode1 No . | MX12025GBH2 | |
| Outline . Dimension | 120*25mm | |
| Operating Voltage | DC 24V | |
| Rated . voltage | DC 24V | |
| Starting Voltage | DC ≤13.0V on/off | |
| Rated current | 1 . 5A ( MAX1 . 9A ) | a . Rated .voltage b . 25 ℃ 65 % RH c . After testing for 5 minutes | |
| Power consumption | 36 W ( MAX45 . 6W ) | |
| Speed | 4800 ± 10 %RPM | |
| Max Airflow | 120CFM | a . Rated .voltage b . AMCA Standard C . Rated current | |
| Air . Static Pressure | 50mmH2O | |
| Noise Level | 52.25dB | a . Rated Voltage b. Non Echo Chamber c . Standard : CNS 8753 / ISO 3744 d . Test Condition : ISO 7779 e . Distance : 1 . 0 M | |
| Life expectancy | 50000Hrs 25 ℃ | MTTF Mean Time To Failure Conf . Level 90 % | |
| No . of . Blade | Round | |
| No . of . Pole | 4 | |
| Rotating Direction | counterclockwise | |
| Lock Protection | YES | |
| Polarity Protection | YES | |
| Overvoltage protection | NO | |
| Overcurrent protection | NO | |
| FG | YES | |
| PWM function | YES | |
| | | | | |

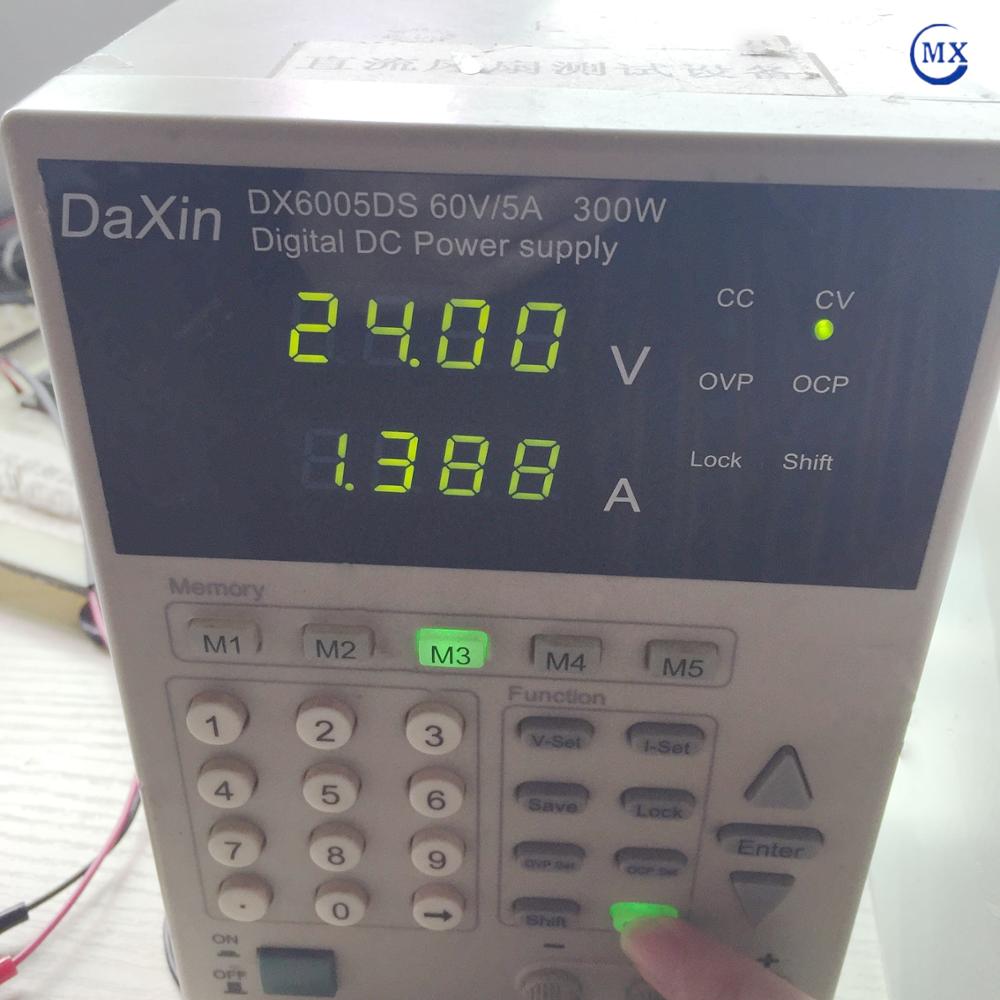

Real fan photos
1. If you want another rpm or voltage or special functionm Please contact with us directly .
2. The size , voltage, power & speed can be made according to your requirements .
3. Could be made with waterproof function .
4. Could be made with control speed ( PWM ) read speed ( FG ) and alarm ( RD ) function .
5. We ' re professional manufacturer of cooling fans for 11 years ' experience .
6. We offer 30000 hours warranty for sleeve bearing fans , 50000 hours warranty for ball bearing fans
7. We can also provide fans with longer use time .
8. On time delivery .
How to choose the fan you want :
( Please provide these information )
Fan Type , DC / AC
Case Size ( Dimensions )
Speed
Air Flow
Noise
Rating Voltage , 3V / 5V / 12V / 48V / 115V / 220-240V
Bearing , Sleeve / 2Ball / VAPO
Wire , 2 lead wires / 3 lead wires / 4 lead wires
Wire Length
Connector or not
Target Price
Shenzhen Topfan Technology Development Co . , Ltd is a medium - sized enterprise which integrates
production , research , development and sales . It has 3000 flat plant and professional design and
production team . At present , the company has production development department , Q & C department,
R&D department , the domestic sales department and overseas sales department .
You could choose the shipping way by yourself.
You could choose the freight forward company by yourself.
We could arrang the shipment according to your require.
If you have any requirements you could contact me soon.
Samples delivery time is 7 working days.(The quantity of free samples among 2-3 pcs.)
Fans quantity:1K~5K,the delivery time is 7~10 working days;
Fans quantity:over 5K,the delivery time is 15-20working days
International express:UPS/DHL/FEDEX and so on .
Any more information , please feel free to contact Mona →
Skype : Mona Yang
QQ : 3146648329
Tel : 86 755 26070992
We will reply you within 2 hours. Thanks
