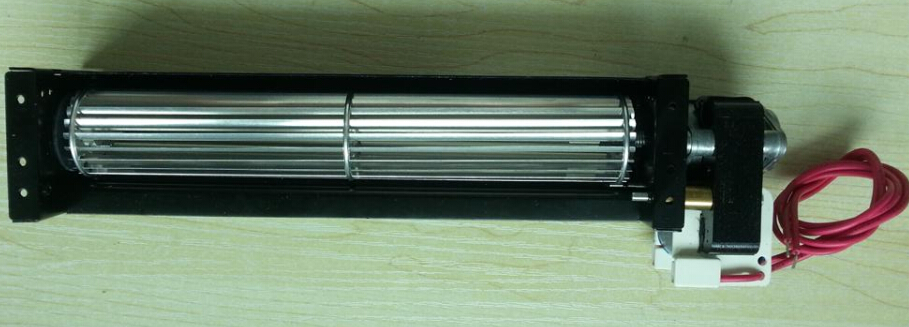

7.5 Inch Cross Flow Fans , 190mm AC Tangential Wheel Fan Diameter 30mm

Product Categories

Shenzhen Topfan Technology Development Co., Ltd.

Contact Now

Brand Name : MX

Model Number : MX30190CFM11

Certification : CE/ROHS/UL/SGS

Place of Origin : China

MOQ : 500pcs

Price : us$1.5/pcs to us$3.00/pcs, and negotiation

Payment Terms : T/T or western Union

Supply Ability : 600,000pcs per month

Delivery Time : 5-12 working days after received your payment

Packaging Details : carton

Voltage : 110-120V , 220-240V

Diameter : 30mm

Length : 90mm , 150mm , 190mm , 290mm

Bearing type : Ball Bearing

Color : Black

Material : Metal

Contact Now

7.5 Inch Cross Flow Fans , 190mm AC Tangential Wheel Fan Diameter 30mm

1. Purpose:

It is applied in air cleaner,elevator,humidifier , laboratory,workshop,dehumidifier,projector and copy machine, etc..

2. Expeceed Life:

Ball Bearing 50,000 hours
Sleeve Bearing 30,000hours

3. ELECTRICAL CHARACTERISTICS:

ALL MEASUREMENTS PERFORMED AT25~30℃ ROOM TEMPERATURE

& 50~80%R.H.UNLESS OTHERWISE SECIFIED.

1	RATED VOLTAGE	VOLTS	V	220 VAC
2	OPERATION VOLTAGE	VOLTS	V	160-242
3	FREQUENCY	Hz	Hz	50
4	NPUT CURRENT	AMP	A	0.13A±10%	AT RATED VOLTAGE
5	INPUT POWER	WATTS	W	13W ±10%	AT RATED VOLTAGE
6	ROTATION SPEED	RPM	RPM	2700±10%
7	ACOUSTICAL NOISE(AVG)	dB(A)	dB(A)	≤32	DETAILS SEE ATTACHED PAGE.
8	MAX .AIR-FLOW	CFM	Q	28	TWO-CHAMBER METHODS DEAILS SEE ATTACHED PAGE.
9	MAX . AIR-PRESSURE	mmH₂O	P	1.0	TWO-CHAMBER METHODS DEAILS SEE ATTACHED PAGE.
10	INSULATION RESISTANCE	MEG. OHM	MΩ	＞20 MΩ	BETWEEN FRAME AND TERMINAL
11	DIELECTRIC STRENGTH			1800V,3S,1MA	BETWEEN FRAME AND TERMINAL.
12	ROTARY DIRECTION			CC W
13	INSULATION CLASS			CLASS E
14	LIFE EXPECTANC			15000 Hours at 25℃/65%RH

4. ENVIRONMENTAL:

4-1.OPERATING TEMPERATURE----------------------- -20 TO+50℃(CLASS E)

4-2.STORAGE TEMPERATURE ------------------------- -30 TO+75℃

4-3.OPERATING HOMIDITY-----------------------------------RH20%-80%

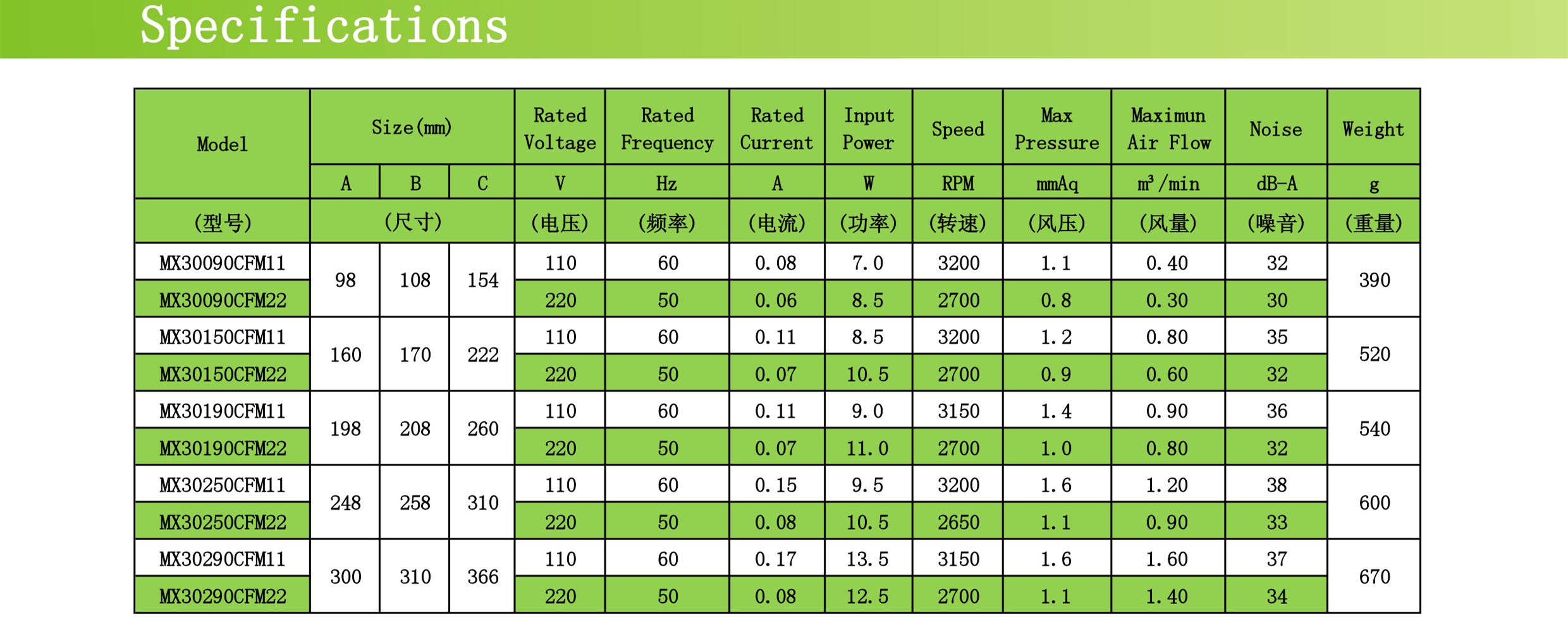

5. Specifications:

7.5 Inch Cross Flow Fans , 190mm AC Tangential Wheel Fan Diameter 30mm

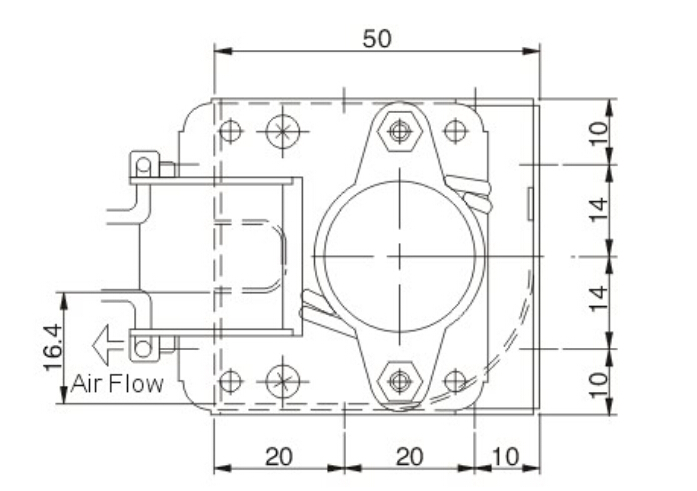

6: Dimensions (Unit:mm)

7.5 Inch Cross Flow Fans , 190mm AC Tangential Wheel Fan Diameter 30mm
