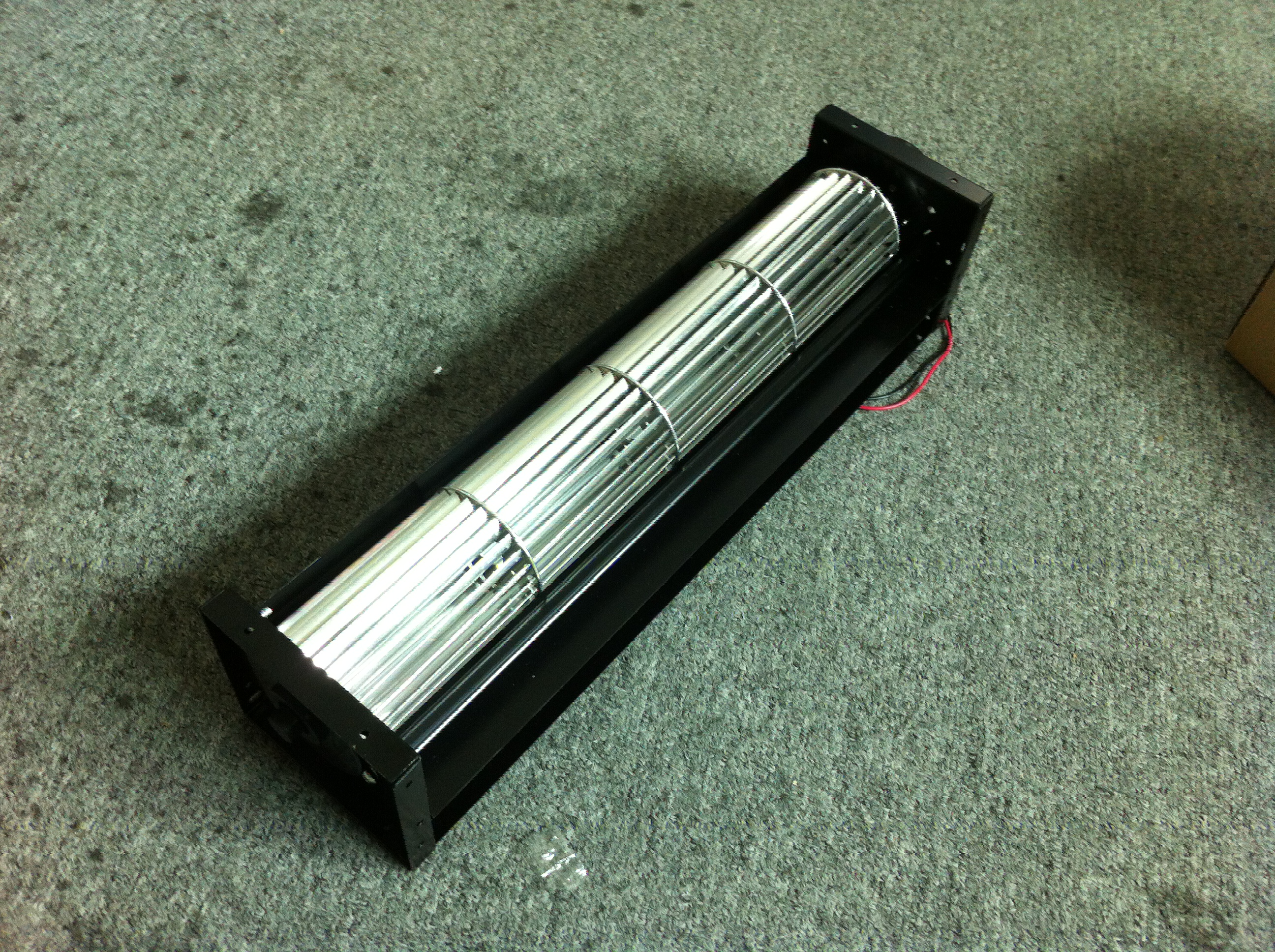

DC Motor Tubular 60mm Cross Flow Industrial Ventilation Fans 420mm length

Shenzhen Topfan Technology Development Co., Ltd.
Contact Now

DC Motor Tubular 60mm Cross Flow Industrial Ventilation Fans 420mm length

  • 1
  • 2
  • 3

Brand Name : MX

Model Number : MX60420CFM2

Certification : CE ROHS

Place of Origin : China

MOQ : 500pcs

Price : USD + 5 / 15 + Piece

Payment Terms : Western Union, T/T

Supply Ability : 10000 + Piece + A Day

Delivery Time : 7 - 10 Working Days

Packaging Details : Carton Box

Size : 60mm x 420mm

Voltage : 24V / 12V

Bearing Type : Ball Bearing

Watt : 6 / 7 . 8W

Speed : 1500rpm

Air Flow : 156CFM

Impeller : Aluminum Alloy

Current Amp : 0 . 25 / 0 . 65A

Contact Now

DC Motor 60mm x 420mm Tubular Fan / 60mm Cross Flow Fans 420mm length







Applications :

1 . Our annual production for cross flow fan is over 5 million sets

2 . Widely applied in electric fireplace , air - cleaning, Industrial cooling , microwave , air conditioning , air curtain machine , heater and other related fields .
About us :

· We are manufacturer of high quality , cost effective , passed VDE , TUV , CCC , RoHS , certified AC / DC cross flow fans , ( voltages 110v – 120v & 220v -240v ) in AC capacitor and shaded pole motors . SP - motor also mean as Single - phase shading - pole asynchronous motor.

· It is widely used in freezer , cooler box , refrigerator , microwave oven and series of fans.



 DC Motor Tubular 60mm Cross Flow Industrial Ventilation Fans 420mm length














1 . SCOPE :

THIS SPECIFICATION DEFINES THE ELECTRICAL AND MECHANICAL CHARACTERISTICS OF THE DC CROSS FLOW FAN .

THE FAN MOTOR IS WITH TWO PHASES AND FOUR POLES

2 . ELECTRICAL CHARACTERISTICS :

ALL MEASUREMENTS PERFORMED AT25 ~ 30℃ ROOM TEMPERATURE

& 50 ~ 80 %R . H . UNLESS OTHERWISE SECIFIED. DC Motor Tubular 60mm Cross Flow Industrial Ventilation Fans 420mm length

1

RATED  VOLTAGE

VOLTS

V

12V DC



2

OPERATION  VOLTAGE

VOLTS

V

8.4VDC - 13 . 2VDC



3

FREQUENCY

Hz

Hz

/



4

INPUT  CURRENT

AMP

A

0 . 70A ± 10%DC Motor Tubular 60mm Cross Flow Industrial Ventilation Fans 420mm length

AT  RATED  VOLTAGE

5

INPUT  POWER

WATTS

W

       8 . 4W ±10%

AT  RATED  VOLTAGE

6

ROTATION  SPEED

RPM

RPM

1400 ± 10%



7

ACOUSTICAL  NOISE(AVG)

dB(A)

dB(A)

≤ 50 Db

DETAILS SEE ATTACHED  PAGE.

8

MAX .AIR-FLOW

CFM

Q

156 CFM

TWO-CHAMBER  METHODS

DEAILS  SEE  ATTACHED  PAGE.

9

MAX . AIR-PRESSURE

mmH2O

P

      1 . 7 mmAq

TWO-CHAMBER  METHODS

DEAILS  SEE  ATTACHED  PAGE.

10

INSULATION

RESISTANCE

MEG.

OHM

>20 MΩ

BETWEEN  FRAME  AND

TERMINAL

11

DIELECTRIC  STRENGTH





5Ma MAX .

AT 500V AC 60HZ

FOR 1 MINUTE

BETWEEN  FRAME  AND

TERMINAL.

12

ROTARY DIRECTION





CC W



13

INSULATION CLASS





CLASS  B



14

LIFE EXPECTANCY





30000 Hours at 25℃ / 65%RH







DC Motor Tubular 60mm Cross Flow Industrial Ventilation Fans 420mm length





DC Motor Tubular 60mm Cross Flow Industrial Ventilation Fans 420mm length









DC Motor Tubular 60mm Cross Flow Industrial Ventilation Fans 420mm length





DC Motor Tubular 60mm Cross Flow Industrial Ventilation Fans 420mm length







,, Shipment

1 . FOB Shenzhen or Hong Kong ( mass production )

2 . DHL , UPS , FEDEX , TNT or any other international express ( sample or small quantity )

<<< More details can be discussed >>>



,, Payment

T / T and Western Union

1 . The payment for the high value sample will be charged.

2 . The payment for the low value sample is free, but the freight should be paid by you.



,, Delivery Time

Generally , 500 ~ 1000pics 10 days after confirming the PI
