DC 65mm x 240mm Cross Flow Blower Fan Three Class Speed Control

Brand Name : MX

Model Number : MX65240CUM1

Certification : CE ROHS

Place of Origin : China / Guang Dong

MOQ : 100

Price : USD + 10 / 30 + Piece

Payment Terms : T/T , Western Union

Supply Ability : 10000 + Piece + A Day

Delivery Time : 7 / 10 Working Days

Packaging Details : Carton Box

Frame : Aluminum

Impeller : Aluminum

Length : 240mm

Voltage : 12V

Air FLow : 145CFM

Speed : 1400RPM

Contact Now

DC 65mm x 240mm Cross Flow Blower Fan Three Class Speed Control

1	RATED VOLTAGE	VOLTS	V	12V DC
2	OPERATION VOLTAGE	VOLTS	V	8.4VDC-13.2VDC
3	size	mm		H M L	65mm x 240mm
4	INPUT CURRENT	AMP	A	1.7 0.72 0.46	AT RATED VOLTAGE
5	INPUT POWER	WATTS	W	20.4 8.64 5.52	AT RATED VOLTAGE
6	ROTATION SPEED	RPM	RPM	2000 1600 1400
7	ACOUSTICAL NOISE ( AVG )	dB(A)	dB ( A )	50 46 43	DETAILS SEE ATTACHED PAGE.
8	MAX . AIR - FLOW	CFM	Q	200 172 145	TWO-CHAMBER METHODS
8	MAX . AIR - FLOW	CFM	Q	200 172 145	DEAILS SEE ATTACHED PAGE.
9	MAX . AIR-PRESSURE	mmH₂O	P	5 4 3.5	TWO-CHAMBER METHODS
9	MAX . AIR-PRESSURE	mmH₂O	P		DEAILS SEE ATTACHED PAGE.
10	INSULATION	MEG.	MΩ	＞20MΩ	BETWEEN FRAME AND
10	RESISTANCE	OHM	MΩ	＞20MΩ	TERMINAL
11	DIELECTRIC STRENGTH			5Ma MAX.	BETWEEN FRAME AND
				AT 500V AC 60HZ	TERMINAL.
				FOR 1 MINUTE
12	ROTARY DIRECTION			CCW
13	INSULATION CLASS			CLASS B
14	LIFE EXPECTANCY			30000 Hours at 25℃ / 65 % RH

Our cross flow fans , also named as tangential or blower wheel fans will generate a wide , even flow of air parallel to the unit being cooled , insuring greater efficiencies and lower noise ratios compared to axial fans.

1 . SCOPE :

THIS SPECIFICATION DEFINES THE ELECTRICAL AND MECHANICAL CHARACTERISTICS OF THE DC CROSS FLOW FAN.
THE FAN MOTOR IS WITH TWO PHASES AND FOUR POLES

2 . ELECTRICAL CHARACTERISTICS :
ALL MEASUREMENTS PERFORMED AT25 ~ 30℃ ROOM TEMPERATURE
& 50 ~ 80%R . H . UNLESS OTHERWISE SECIFIED.

3, MECHANICAL
3.1 . BEARING SYSTEM ------------------3 BALL BEARING.
3.2 . LEAD WIRE ---------------- 1007 AWG# 20 , 80℃ , 300V , L= 900MM
                          +POSITIVE-------------RED
                              -- NEGATIVE -----------BLACK
                              H : BLACK + BROWN
                              M : BLACK + YELLOW
L : BLACK + WHITE

4,ENVIRONMENTAL:
      4-1. OPERATING TEMPERATURE----------------------- -10 TO + 50℃
      4-2. STORAGE TEMPERATURE ------------------------- -20 TO + 65℃
      4-3 OPERATING HOMIDITY-----------------------------------RH20% - 80%

5:DIMENSIONS DRAWING                           UMIT:MM

DC 65mm x 240mm Cross Flow Blower Fan Three Class Speed Control

Product Tags:

ac cross flow fans

cross flow blower fan

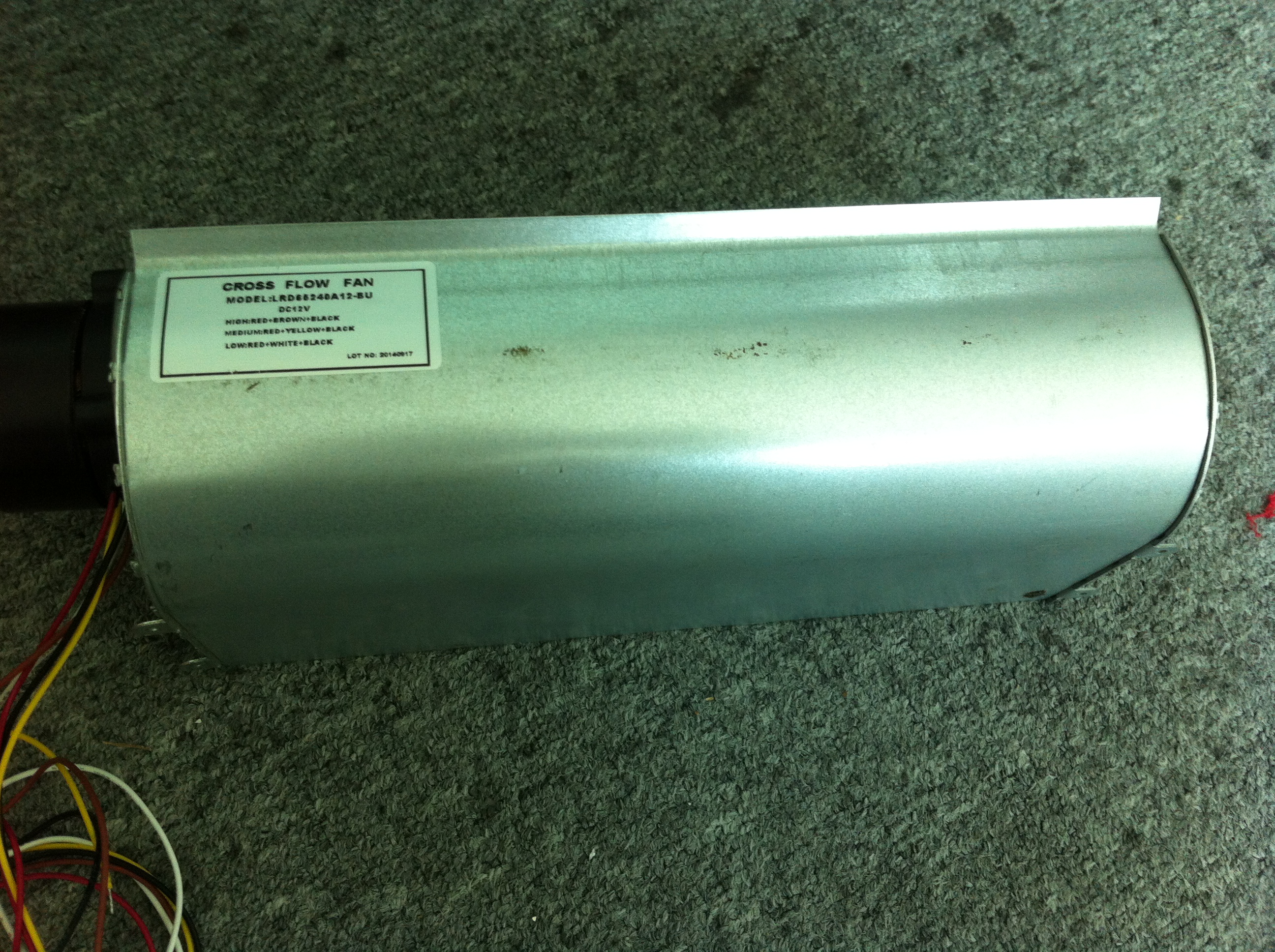

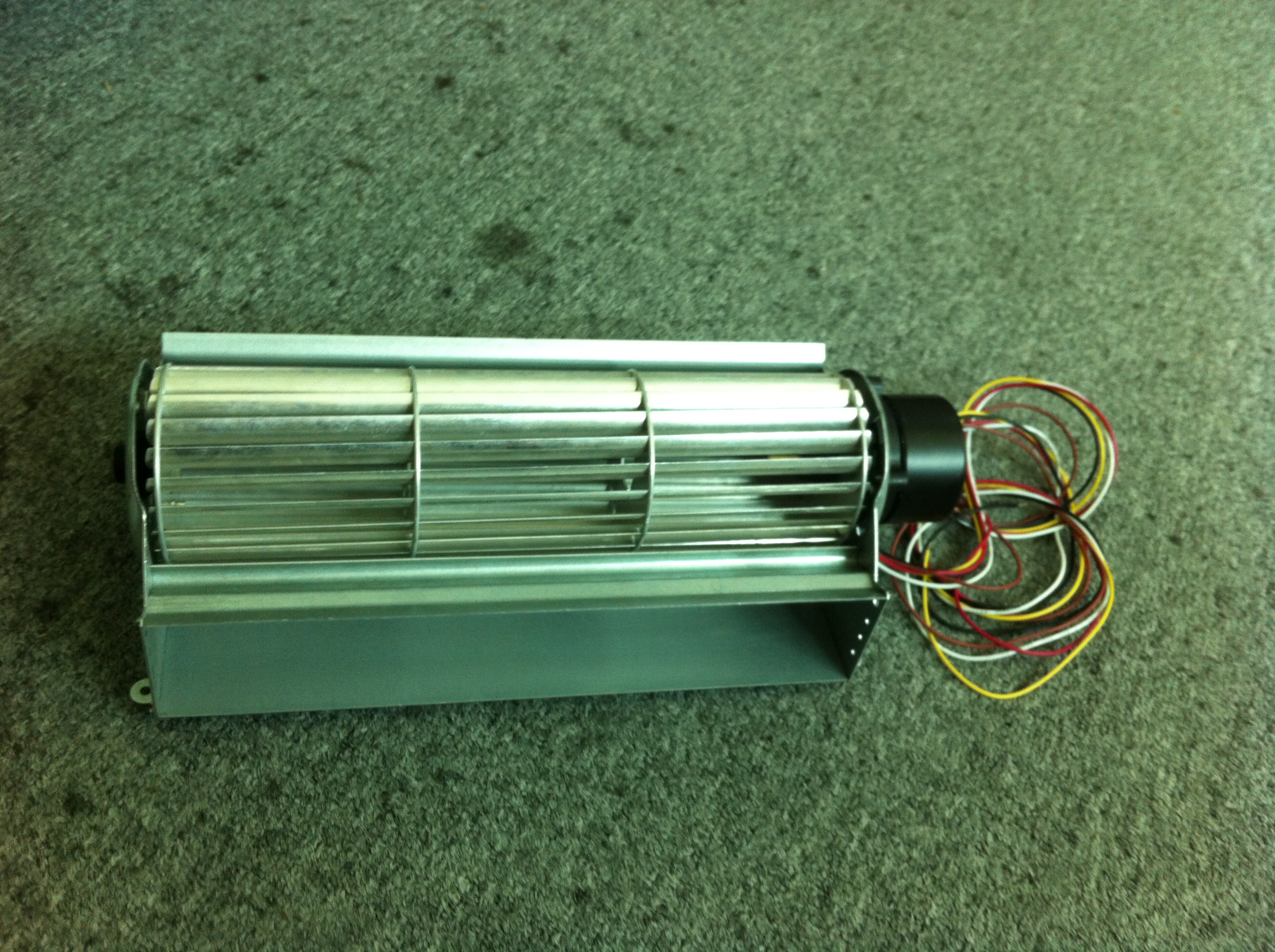

DC 65mm x 240mm Cross Flow Blower Fan Three Class Speed Control Images
