DC Cross Flow Fan 30 mm × 90 mm For Humidifier Or Air Cleaner Or Air Conditioner

Brand Name : MX

Model Number : MX3090CFM1

Certification : CE/ROHS/UL/SGS

Place of Origin : China

MOQ : 500pcs

Price : us$8/pcs to us$15.00/pcs, and negotiation

Payment Terms : T/T or western Union

Supply Ability : 600,000pcs per month

Delivery Time : 5-12 working days after received your payment

Packaging Details : carton

Voltage : 12V , 24V

Diameter : 30mm

Length : 90mm , 150mm , 190mm , 290mm

Bearing type : Ball Bearing

Color : Black

Material : Metal

Contact Now

DC Cross Flow Fan 30 mm × 90 mm For Humidifier Or Air Cleaner Or Air Conditioner

1. Purpose:

It is applied in air cleaner,elevator,humidifier , laboratory,workshop,dehumidifier,projector and copy machine, etc..

2. Expeceed Life:

Ball Bearing 50,000 hours
Sleeve Bearing 30,000hours

3. ELECTRICAL CHARACTERISTICS:

ALL MEASUREMENTS PERFORMED AT25~30℃ ROOM TEMPERATURE
& 50~80%R.H.UNLESS OTHERWISE SECIFIED.

1	RATED VOLTAGE	VOLTS	V	24V DC
2	OPERATION VOLTAGE	VOLTS	V	16.8VDC-26.4VDC
3	FREQUENCY	Hz	Hz	/
4	INPUT CURRENT	AMP	A	0.10A±10%	AT RATED VOLTAGE
5	INPUT POWER	WATTS	W	2.40W ±10%	AT RATED VOLTAGE
6	ROTATION SPEED	RPM	RPM	3600±10%
7	ACOUSTICAL NOISE(AVG)	dB(A)	dB(A)	≤36Db	DETAILS SEE ATTACHED PAGE.
8	MAX .AIR-FLOW	CFM	Q	19.5 CFM	TWO-CHAMBER METHODS DEAILS SEE ATTACHED PAGE.
9	MAX . AIR-PRESSURE	mmH₂O	P	2.2mmAq	TWO-CHAMBER METHODS DEAILS SEE ATTACHED PAGE.
10	INSULATION RESISTANCE	MEG. OHM	MΩ	＞20 MΩ	BETWEEN FRAME AND TERMINAL
11	DIELECTRIC STRENGTH			5Ma MAX. AT 500V AC 50HZ FOR 1 MINUTE	BETWEEN FRAME AND TERMINAL.
12	ROTARY DIRECTION			CCW
13	INSULATION CLASS			CLASS B
14	LIFE EXPECTANCY			30000 Hours at 25℃/65%RH

4. MECHANICAL

4.1.BEARING SYSTEM ------------------3 BALL BEARING.
4.2.LEAD WIRE ---------------- 1007 AWG# 24,80℃,300V,
                          +POSITIVE-------------RED
                           --NEGATIVE-----------BLACK
5. ENVIRONMENTAL:

      5-1.OPERATING TEMPERATURE----------------------- -20 TO+50℃(CLASS E)
      5-2.STORAGE TEMPERATURE ------------------------- -30 TO+75℃
      5-3.OPERATING HOMIDITY-----------------------------------RH20%-80%

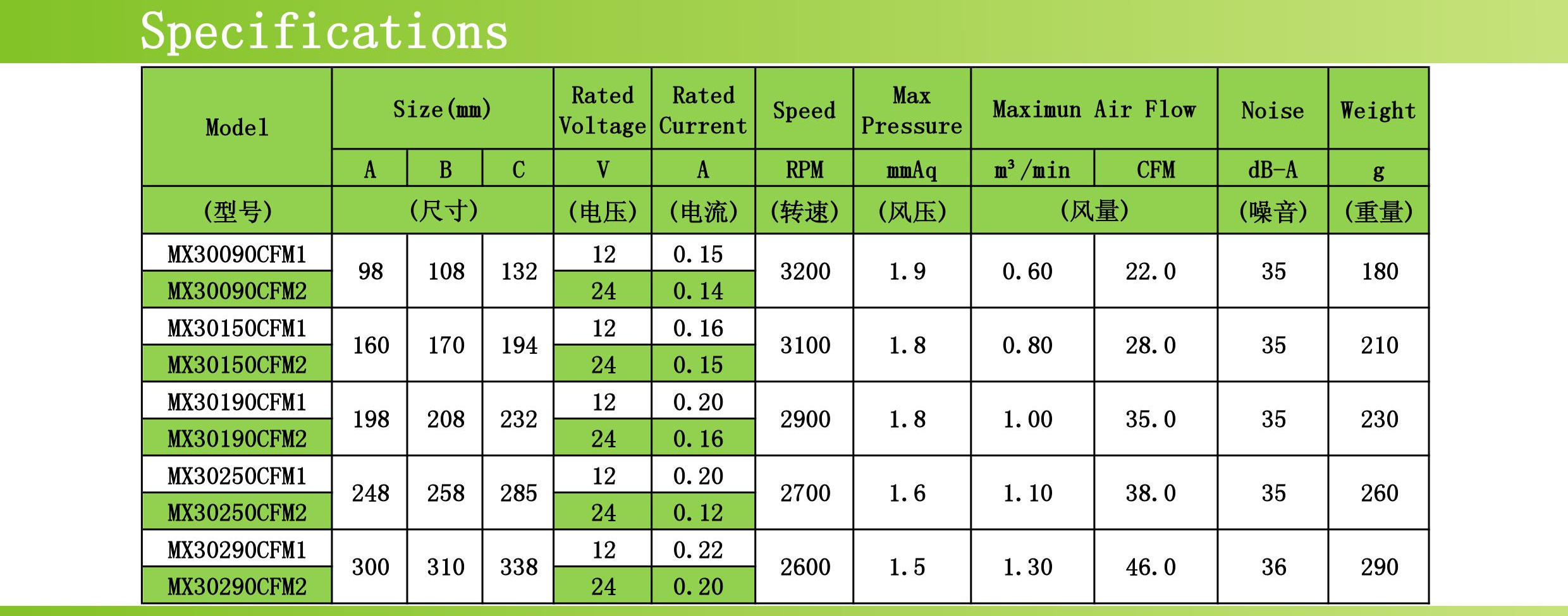

5. Specifications:

DC Cross Flow Fan 30 mm × 90 mm For Humidifier Or Air Cleaner Or Air Conditioner
6: Dimensions (Unit:mm)

DC Cross Flow Fan 30 mm × 90 mm For Humidifier Or Air Cleaner Or Air Conditioner
